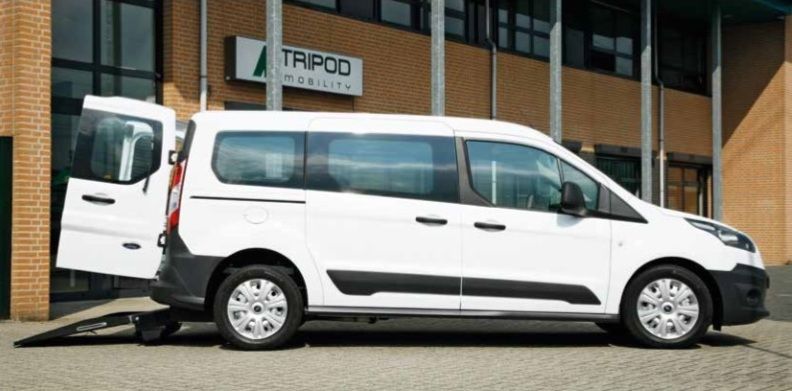

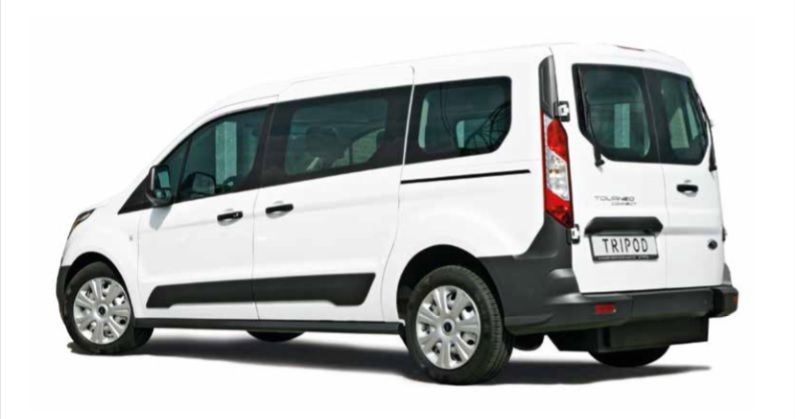

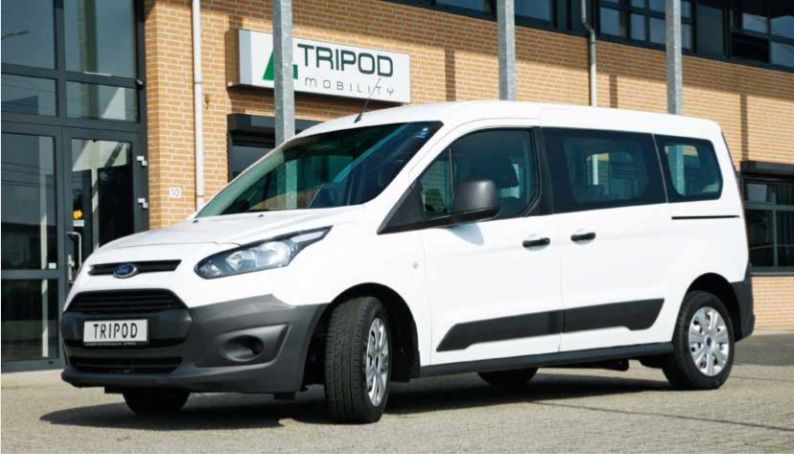

Ford Tourneo Connect Grand REC
• Official Ford approval

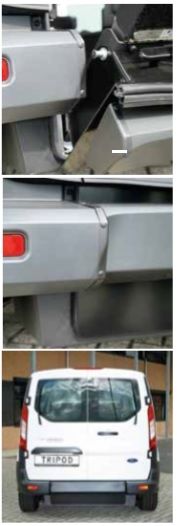

• The center part of the rear bumper will be replaced on the hatch, thus maintaining the original look
• Modified fuel tank and exhaust system to accommodate a deep and level lowered floor
• Possibility to place one or two swivel and foldable seats on the third row
• Generous dimensions for the wheelchair passenger, giving good all round visibility
• New and innovative ramp where the lowered floor has a seamless finish
• Wheelchair tie-down system integrated in the lowered floor
Standard
• Lowered floor
• Modified bench on the second row
• 4-point wheelchair tie-down system (ISO-norm 10542) integrated into the lowered floor
• Adjustable 3-point seatbelt for the wheelchair passenger
• Modified fuel tank and exhaust system to accommodate a deep and level lowered floor
• Double folding lightweight ramp (130 cm)
• Fully isolated lowered floor with matching upholstery
Options
• One or two swivel and foldable seats on the third row
• Taxi ramp
• Winch
• Bodyguard

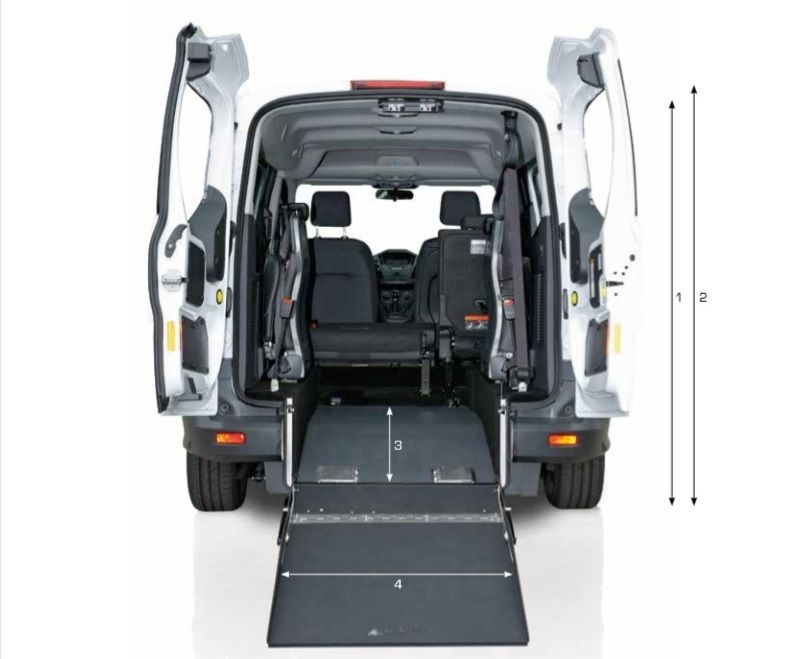

Dimensions Ford Tourneo Connect Grand REC:
1. Entrance height 144 cm
2. Interior height 147 cm
3. Length of lowered floor 154 cm
4. Width of lowered floor 78 cm

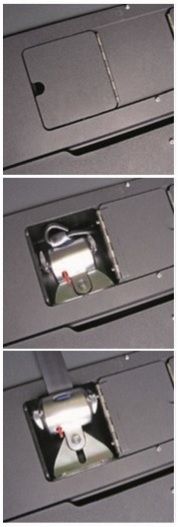

The complete 4-point wheelchair tie-down system is integrated in the lowered floor

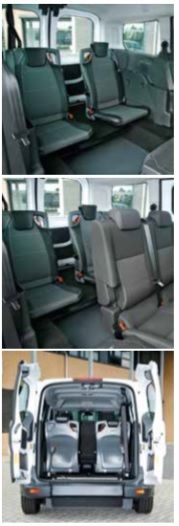

ComfortableTriflex Air swivel seats with Isofix on the third row

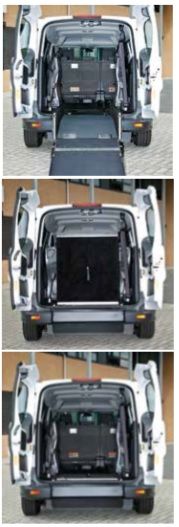

The new and innovative ramp where the lowered floor has a seamless finish
The ramp is able to fold down which creates a flat floor
